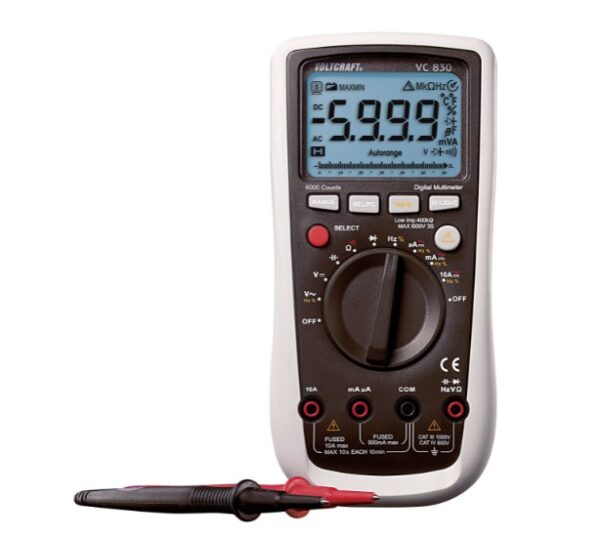

Digitalni multimetar VOLTCRAFT VC830 CAT III 1000 V, CAT IV 600 V.

The professional multimeter series from VOLTCRAFT ®. Sturdy, reliable, practical equipment, ergonomic shape, safe for the user – these are the attribute, which describes the professional multimeter. Also in puncto safety, this multimeter sets the diagram. The patented casing only allows you to open it to change the battery and the fuse only when the device has been disconnected from all test leads. The integrated TLD® function (test lead detection) warns the user if the test leads are connected incorrectly. At input voltages 30 V a warning symbol appears in the display. The sturdy casing is splashed with soft rubberised cap and the 1000 V high power safety, the Warning tone on wrongly connected meter lead and impedance switchover, which reduces the input resistance by pressing the key to revent erroneous measurement by stress-voltage and to round-off the exclusive security concept. An opto-electronic interface for the transmission and analysis of data on the computer is included in the series equipment. The device is designed for measurements in the overvoltage category CAT IV 600V and CAT III 1000V; approved and tested according to EN-61010.

Compact and robust
The shock-proof device features a composite enclosure including a protective rubber layer. And the rubber-coating also provides lots of grip. A stand on the rear side lets you place the multimeter in a way that allows you to read the display, keeping your hands free for taking readings.

Comfortable and safe
Autoranging makes taking readings easy as the results are always displayed at the best resolution possible. Selectable display lighting for optimum readabliliy in low-light conditions. A voltage reading range stretching to 1000 V enables tackling pro jobs safely. This includes 3-phase power grids. Fuses protect amperage reading ranges against overload.

Factory calibration ensures accurate readings
Calibration according to manufacturer standards is part of Voltcraft Quality Assurance. This ensures high quality products and compliance with tolerance limits as outlined in the user manual. This does not include certification.

Highlights & Details
CAT IV 600V
6000 counts
Auto range
Middle value-Measuring (AVG)
Facts
Standard Measuring area V, A, Ω, Frequency, capacity
Auto-ranging
Diode test
Acoustic continuity tester
Low-Bat-Function
Data-hold
REL
Duty cycle
Optical interface
Impedance change over for stray voltage suppression
Warning symbol in voltages 30 V
CAT IV 600V, CAT III 1000V
TLD®-Function
Backlight
Simpler and safer battery and fuse change without opening the housing completely.
Delivery
battery
Test leads
User manual.
