Opis
The core of Beagley-AI is the Texas Instruments AM67A processor
Quad-Core 64-bit ARM® Cortex®-A53 CPU subsystem with a 2.4GHz clock frequency
Two universal C7x DSPs with Matrix Multiplication Accelerators (MMA) each with 4 tops
Arm Cortex-R5 subsystem for I/O and low latency control
50 Gflop GPU
Video and image processing accelerator
Processor: Texas Instruments AM67A, Quad 64-bit ARM® Cortex®-A53 @1.4 GHz, multi-core including arm/GPU processors, DSP, and Vision/deep learning accelerators
RAM 4 GB LPDDR4
Wi-Fi: BeagleBoard BM3301, 802.11ax Wi-Fi
Bluetooth Low Energy 5.4
USB-connections: 4 x USB 3.0 type A-connections with a simultaneous 5 Gbps-operation, 1 x USB 2.0 tyC, supports USB 2.0 device mode
Ethernet: Gigabit Ethernet, with PoE+ support (separate PoE required)
Camera/Display: 2 x 4-lane MIPI camera port (one port mixed with DSI capability)
1 x HDMI display, 1 x OLDI display, 1 x DSI MIPI display
Real-time clock (RTC): Supports external button cell battery for time storage in case of power failure
Debug UART: 1 x 3-pin debug UART
Power supply 5V/3A DC Current via USB-C.
Power key: On/off included
PCIe Interface: PCI-Express® Gen3 x 1 interface for high-speed peripherals (separate M.2 HAS or other adapter required)
Extension connection 40-pin multi-pin connector
Fan connector: 1 x 4-pin fan connector, supports PWM control and fan speed measurement
Memory: MicroSD card slot with UHS-1 support
Tag connection: 1 x JTAG, 1 x external PMIC programming connector

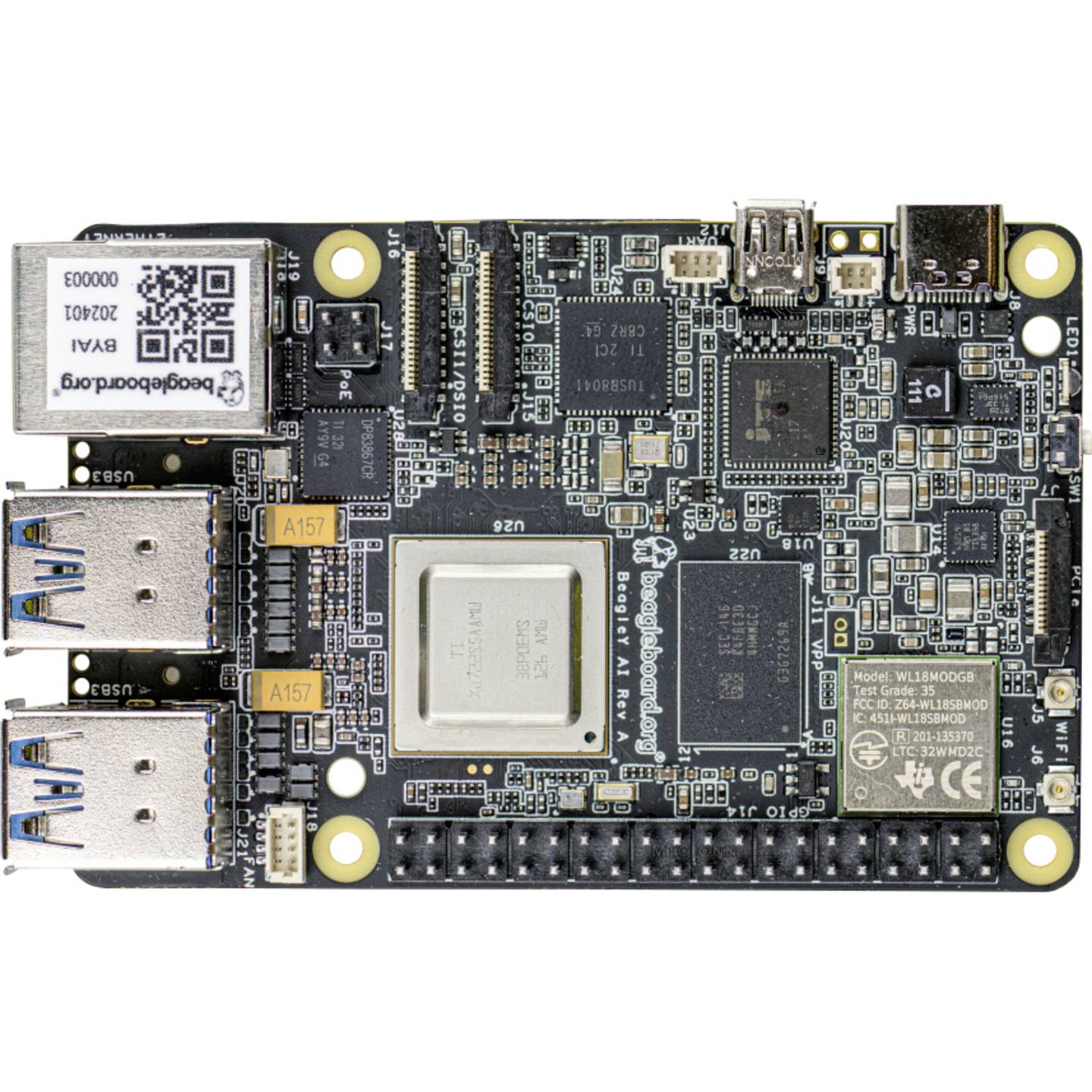

The Beagley-AI from BeagleBoard.org is an advanced open source single board computer designed specifically for AI applications. Beagley-AI is based on Texas Instruments’s high-performance arm-based AM67A Vision processor, offering exceptional performance and versatility for a wide range of applications.
The AM67A processor is part of the Jacinto™ 7 architecture optimized for Smart Vision camera and general compute applications. It integrates high-performance computing technology that works with both traditional and deep-learning algorithms, while providing an industry-leading balance of performance and system integration for scalability and cost-efficiency.
Main features
– Familiar form factor: Compatible with a wide range of accessories that ensure flexibility and ease of use.
– Edge AI Acceleration: Provides 4 TOPS Edge AI acceleration on a fanless computing platform.
– Proven components: Developed in collaboration with industry leaders Texas Instruments, BeagleBoard.org and Seeed Studio.
Possible applications of Beagley-AI
– Human-machine interface (HMI)
– Monitoring hospital patients
– Industrial PCs
– Security systems for buildings
– Off-highway vehicles
– Test and measurement equipment
– Energy storage systems
– Video monitoring
– Machine vision
– Mobile Industrial Robots (AGV/AMR)
– Front camera systems
– Improve your projects with Beagley-AI, the robust and versatile solution for all your Edge AI computing needs.
