Opis

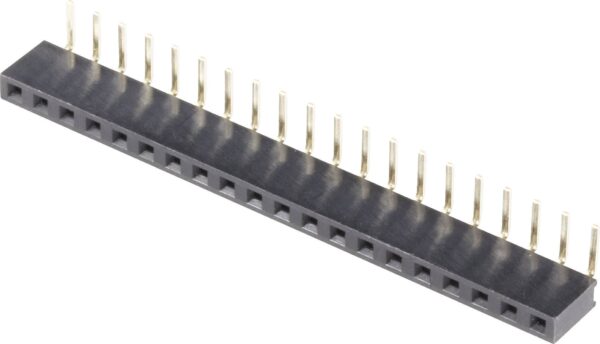

Manufacturer color: black – Divisible: no – Pin length (printed side): 3.20 mm – Socket depth: 4.2 mm – Industrial goods: no – Plug connector design: angled strip with female connectors – Contact surface: gold-plated – Contact material: copper alloy – Housing material: polyester – Length: 51.30 mm – Height: 5.60 mm – Width: 7.2 mm – Rated voltage: 600 V – Rated current: 3 A – Pin shape: rectangular – Base grid: 2.54 mm – Pin diameter: 0.70 mm – Connection (components): for printed circuit board – Total number of poles: 20 – Directional plug: horizontal to printed circuit board – Temperature (max.): +105 C – Temperature (min.): -40 C – Number of positions per row: 20 – Number of rows: 1
