Opis

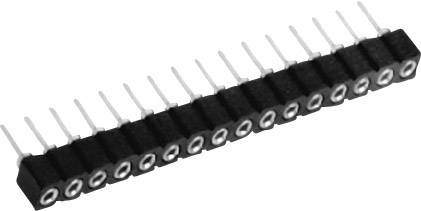

Manufacturer color: black – Divisible: no – Pin length (printed side): 3.20 mm – Socket depth: 3.50 mm – Industrial goods: no – Connector design: flat strip with female connectors – Contact surface: tinned – Contact material: copper alloy – Housing material: thermoplastic plastic – Length dimension: 20.00 mm – Height dimension: 2.20 mm – Width dimension: 7.40 mm – Rated voltage: 150 V/DC – Rated current: 3 A – Pin shape: round – Base grid: 2 mm – Pin diameter: 0.40 mm – Connection (components): for printed circuit board – Total number of poles: 10 – Directional plug: perpendicular to the printed circuit board – Temperature (max.): +125 C – Temperature (min.): -55 C – Number of positions per row: 10 – number vrste: 1
