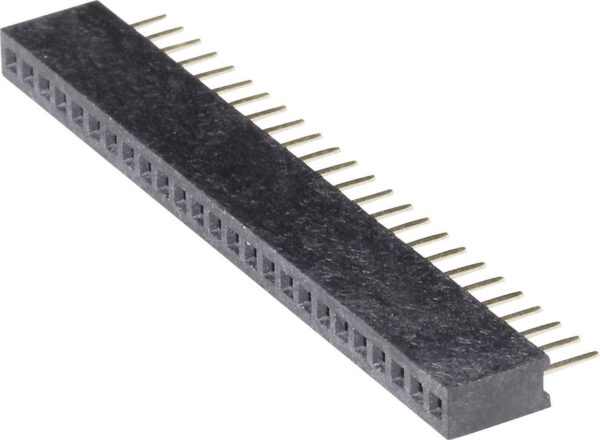

Manufacturer color: black – Divisible: no – Pin length (printed side): 2.40 mm – Socket depth: 4.3 mm – Industrial goods: no – Connector design: flat rail with female connectors – Contact surface: gold-plated – Contact material: copper alloy – Housing material: polyester – Length: 32.13 mm – Height: 2.14 mm – Width: 6.7 mm – Rated voltage: 300 V/AC – Rated current: 1 A – Pin shape: rectangular – Base grid: 1.27 mm – Pin diameter: 0.50 mm – Connection (components): for printed circuit board – Total number of poles: 25 – Directional plug: perpendicular to the printed circuit board – Temperature (max.): +105 C – Temperature (min.): -40 C – Number of positions per row: 25 – Number of rows: 1
