Tahometar UNI-T UT372D 1 – 99999o/min

19.000.00 rsd

Opis

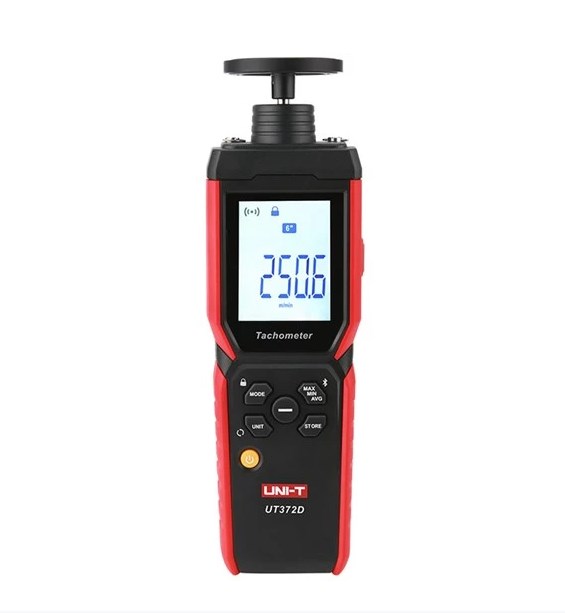

Tahometar UNI-T UT372D.

The UT372D 2 in 1 tachometer is a reliable and safe device that combines contact and non-contact measurement modes. It is mainly used to measure revolutions per minute (RPM), frequency, surface speed and length in the field of motors, fans, automobiles, papermaking, etc.

Product parameters:

– contact and non-contact measurement
– measuring rotation speed, frequency, count, surface speed and length.
– MAX/MIN/AVG/HOLD
– rotating LCD display with backlight
– unit conversion
– a Bluetooth application that makes it easy to view data, export graphs and perform other operations on a smartphone.
– automatic shutdown
– data storage (10 groups of data)
– two buttons for measuring

Technical parameters:

Non-contact (optical) measurement:
– rotation speed (rpm): 1-99,999
– frequency (HZ): 1-1.666
– count (REV): 1-99,999
– target distance: 50~500mm

Contact measurement:
– rotation speed (rpm): 1-19,999
– frequency (HZ): 1-333

– surface speed:
0.1m round
0.1-1.999 m/min
0.4-6.550 ft/min
4-78,700 in/min

6″ wheel
0.15-1.524 m/min
0.5-5000 ft/min
6-60,000 min/min

– length 0-99999(m/ft/in)
– accuracy ±0.02% ±1 digit
– measurement modes: contact speed/ non-contact speed/ counting/ frequency/ surface speed/ length
– contact measuring unit: m/min, ft/min, in/min, m, ft, in
– statistical measurement: Max/ Min/ last reading/ average
– data storage of 10 groups
– operating temperature/humidity: 0 °C~50 °C; ≤80%RH
– storage temperature: -20 °C~60 °C; ≤80%RH
– drop test from a height of 1 m
– automatic shutdown after approx. 15 minutes of inactivity
– product color: red gray
– product weight: 181 g (without batteries)
– product size: 176 × 63 × 38 mm
– charging: 3 x AAA 1.5 V batteries

Accessories :
– contacts on the shaft (cone/inner cone)
– contact wheels (6in/0.1m)
– fabric bag
– reflective tape
