Opis

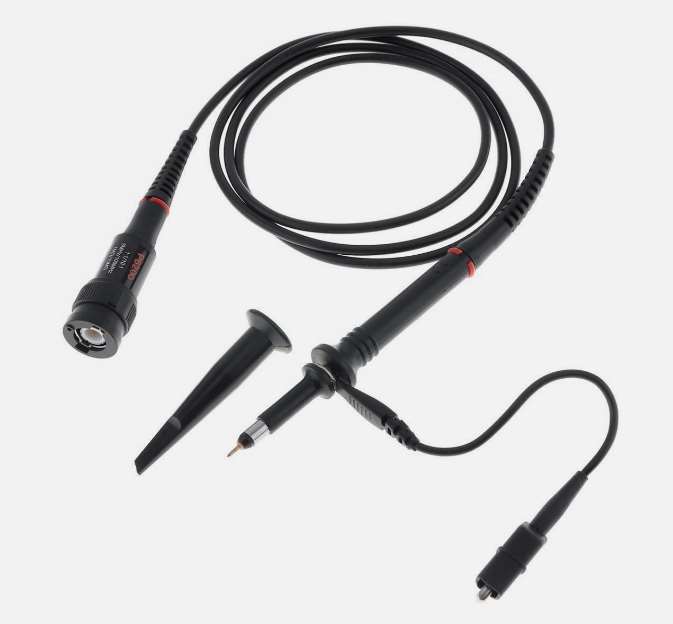

Sonda za osciloskope P6200 600V 200MHz.
Features:
– BNC insulation head is adopted, which meets.
– Locating sleeves ensure the stability and reliability of the tip exposed to the test point.
– Detachable hook tip, the hook is well protected by the plastic case.
– High quality oscilloscope probe with high precision and high frequency.
– Pluggable ground wire is used for easy replacement.
– Necessary accessories for oscilloscope.
– Different colors are easy to distinguish.
Model: 6200
Type: BNC
Band Width: 200MHz
Rise Time: 1.75ns
Attenuation Ratio: 1X & 10X
Resistance: 1MΩ / 10MΩ +/- 2%
Input Capacitance: 1X: 70pF~120pF, 10X: 13pF~17pF
Maximum Input Voltage: 10X: 600Vp-p
Operating Environment: 0-50°C, 0~80%RH
Save Environment: -20-60°C, 0~90%RH
Compensation Range: 10pF-35pF
Operating Humidity: 0-80%RH
Place of Application: Test Oscilloscope Signal
Product Weight: 79 G / 2.79 Ounces
Product Dimensions (L*W*H): 205*140*10 MM / 8.07*5.51*0.39 Inches
Package Weight: 79.0 G / 2.79 Ounces
Package Dimensions (L*W*H): 220*145*15 MM
