Opis

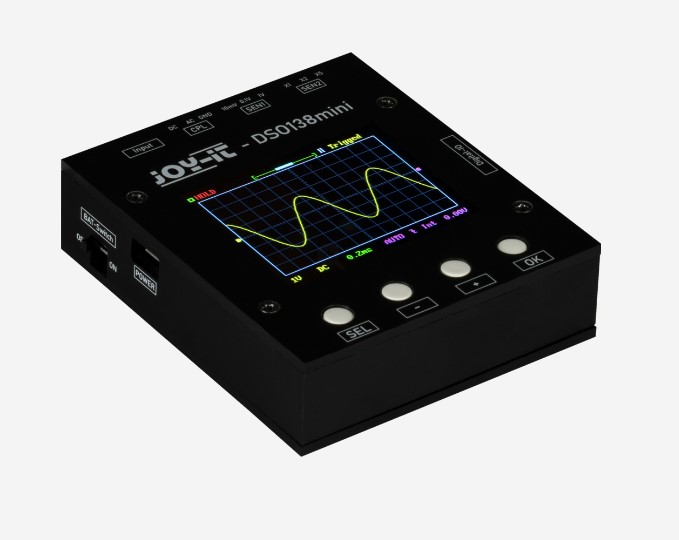

Set kit komplet osciloskop DSO-138 MINI Joy-iT.
The DSO-138 Mini is an improved successor of the DSO-138 is the perfect complement to the already common multimeter and is able to be used on the go with an additionally available battery. The DSO-138-Mini is particular suitable for tinkerers because you can measure and valuate time-dependent signals with this without having to invest in expensive hardware. Our oscillocope provides all fundamental functions like follows: automatic/manual trigger mode, single shot recording with signal analysis and restoration of stored signal characteristics.
SPECIAL FEATURES
battery operation available, 1kHz/3.3V test signal
SAMPLING RATE
1 MSa/s
BANDWIDTH
0-200 KHz
SENSITIVITY RANGE VERTICAL RESOLUTION
10 mV/div – 5 V/div
MAXIMUM INPUT VOLTAGE
50Vpk (1x Probe)
INPUT IMPEDANCE
1 MΩ/ 20pF
RESOLUTION
12 Bits
MEMORY
1024 Points
TIME BASE
500s/Div – 10µs/Div
TRIGGER MODE
Auto, Normal, Single Shot
TRIGGER TYPE
Rising / falling Edge
POWER SUPPLY
3.5 – 6 V DC (microUSB)
POWER CONSUMPTION
~ 120mA (at 5 V)
EXTERNAL TRIGGER INPUT
for TTL and LVTTL signals
SERIAL DATA OUTPUT
optional connection to PC
CONNECTIVITY
general purpose control board, systems can connect easily via MCU ports
DIMENSIONS
85 x 75 x 15 mm
WEIGHT
176
ITEMS SHIPPED
DSO-138-Mini, 1x BNC to Crocodile clip
EAN
4250236820545
ARTICLE NO.
DSO-138-Mini
