Opis

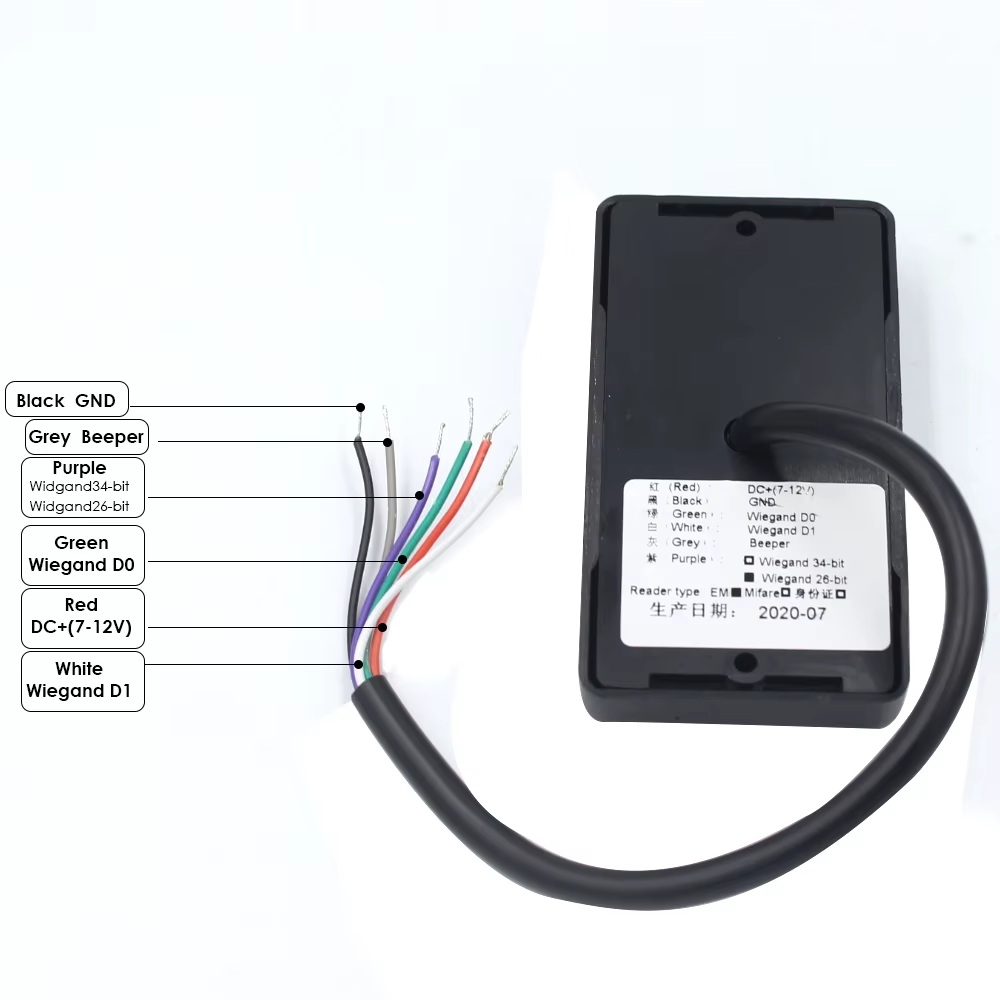

RFID IC čitač kartica 125Khz 13.56Mhz čitač kartica za kontrolu pristupa.
Features:
> 125KHz Proximity /13.56MHz Mifare Card Reader
> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
> 26/34bit Wiegand (default)
> Easy to install on Metal Door Frame or Mullion
> External LED Control
> External Buzzer Control
> Indoor / Outdoor Operation
> Solid Epoxy Potted
> Waterproof IP65
> Reverse Polarity Protection
| Model |
|
|
| Read Range | EM: Up to 10CM, MF:Up to 5CM | |
| Reading Time (Card) | ≤300ms | |
| Power / Current | DC 6-14V / Max.70mA | |
| Input Port | 2ea (External LED Control, External Buzzer Control) | |
| Output Format | 26bit/34bit Wiegand (default) | |
| LED Indicator | 2 Colour LED Indicators(Red and Green) | |
| Beeper | Yes | |
| Operating Temperature | -20° to +65°C | |
| Operating Humidity | 10% to 90% relative humidity non-condensing | |
| Colour | Black | |
| Material | ABS+PC with texture | |
| Dimension(W x H x T)mm | 80X43X16mm | |
| Weight | 50g | |
| Index of Protection | IP65 |
