Digitalni multimetar UNI-T UT171C

46.000.00 рсд

Kategorija:

Opis

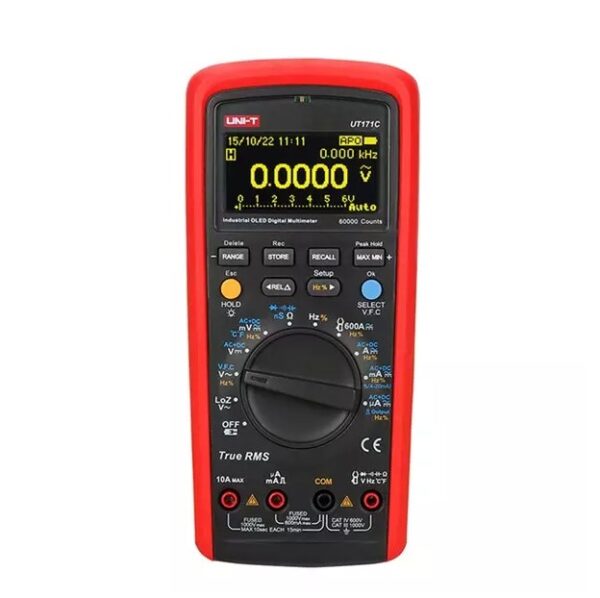

Multimetar UNI-T UT171C

UT171 Series Multimeters are hand-held multimeters with automatic and manual range switching and 4 3/4 – 4 5/6 digit resolution. The devices belong to the upper middle class, excel in quality design and reliability and are also suitable for industrial use. They can measure AC / DC voltages and currents, resistance, diode test, continuity test, capacitance, frequency, duty cycle, temperature, 4-20mA current loop, conductivity, VFC, NCV. The devices enable data storage and connection via USB with optical separation or via Bluetooth.

The UNI-T UT171C multimeter is the best instrument in the UT171 series.
Unlike the UT171A, the UT171C has a higher range for measuring resistance and capacitance, and also measures conductivity (inverse resistance). The display type is OLED with a dot matrix. The display range is ± 60000 for voltages, currents and frequencies and ± 6000 for capacitance measurements. The display includes an analog bar-graph with 31-part. Refresh rate 4 to 5 times per second. The fuses are protected by tube fuses (range 10A fuse FF 10A H / 1000V (10 x 38mm); range mA / µA fuse FF 800mA H / 600V (6 x 32mm)). The device can test its own fuses (without opening the device). The multimeter is powered by a 7.4V / 1800mAh lithium battery. The measuring range can be selected automatically or manually. Included are test leads with tips in safety category CAT III 1000V and CAT IV 600V.

Product parameters:

– fully complies with IEC / EN61010-1, and have double insulation
– categorized as CAT III 1000V – internal el. installation including three-phase distribution
– categorized as CAT IV 600V – outdoor el. installation (belay elements, beginning of internal installation)
– The maximum display is 60000, an OLED type inverted display with a dot matrix
– Display of 60000 frequency measurement display
– Display for capacity measurement 6000
– Refresh rate for most measurements 4 to 5 times per second
– setting ranges automatic or manual
– AC voltage measuring ranges : 600 mV / 1000 V
– AC currents measuring ranges : 600 μA / 10 A
– DC voltage measuring ranges : 600 mV / 1000 V
– DC currents measuring ranges : 600 μA / 10 A
– Measuring ranges for currents using 60 and 600 A pliers
– resistance measuring ranges : 600 Ω / 60 MΩ
– capacitor capacity measuring ranges : 60.00 nF / 60.00 mF
– measuring ranges from : 60 Hz to 10 MHz
– Rectangular signal generator 0.5Hz to 4800Hz
– duty ratio measuring range : 1,0% to 99%
– measuring range duty cycle : 100.0ms to 0.100µs
– conductivity measuring range : 60nS
– temperature measuring range : -40°C ~ 1000°C, (with supplied K-type thermocouple nickel-chromium-nickel-silicon only up to + 230°C)
– High precision
– Analogue scale Bargraf, 31 divisions
– TRMS, measurement of voltage rms voltage st. voltage and currents
– during AC voltage measurement, the frequency display or the voltage duty cycle can be measured on the secondary display
– on the secondary display it is also possible to measure the AC component mounted on DC voltage
– datalogging 1000 values
– relative measurement mode
– measurement of MAX and MIN peaks with 1ms response
– Indication of poor wiring
– Low battery indication
– automatic shutdown (sleep when idle)
– Overload protection of voltage inputs
– protection of surge inputs with fast fuses
– input impedance 10MΩ
– Non-contact voltage detection without test probes
– test of diodes and semiconductor transitions with voltage 0 to 3V
– Battery powered by LiIon 7.4V / 1.800mAh
– supplied USB cable with converter including software on CD
– Option to purchase a Bluetooth adapter UT-D08
– supplied DC 10V / 500mA power supply with accessories
– measurement in elmag is also possible. field with intensity 1V / m with additional error 5%

Technical parameters :
( accuracy is defined at 23 ° C ± 5 ° C and relative humidity less than or equal to 75% )

– DC voltage measurement (input impedance is 10MΩ) :
( range / resolution / accuracy)
600.00 mV / 10µV / ± 0.025 % + 5
6.0000 V / 0.1 mV / ± 0.025 % + 5
60.000 V / 1mV / ± 0.025 % + 5
600.00 V / 10mV / ± 0.03 % + 5
1000.0 V / 100mV / ± 0.03% + 5

– AC voltage measurement (input impedance is 10MΩ, 45Hz to 1kHz ) :
( range / resolution / accuracy )
600.00 mV / 10µV / ± 0.4 % + 40
6.0000 V / 0.1 mV / ± 0.025 % + 5
60.000 V / 1mV / ± 0.025 % + 5
600.00 V / 10mV / ± 0.03 % + 5
1000.0 V / 100mV / ± 0.03% + 5
LoZ 100.0 V / 0.1 V / ± 2.0 % + 10
V.F.C. 600V/1000V / 0.01 V/0.1 V / ± 2.0 % + 10

– DC current measurement :
( range / resolution / accuracy )
600.0 μA / 0.01 μA / ± 0.25 % + 20
6000.0 μA / 0.1 μA / ± 0.25 % + 2
60.000 mA / 1μA / ± 0.7 % + 2
600.0 mA / 10μA / ± 0.15% + 2
6.000 A / 0.1mA / ± 0.5 % + 3
10.000 A / 1m A / ± 0.5 % + 2
% (4-20mA) / 0,01% / ± 0.5 % + 2

– AC current measurement ( 45Hz to 1kHz ) :
( range / resolution / accuracy )
600.00 μA / 0.01 μA / ± 0.75 % + 20
6000.0 μA / 0.1 μA / ± 0.75 % + 20
60.000 mA / 1µA / ± 0.75 % + 20
600.000mA / 10µA / ± 0.75 % + 20
6.0000 A / 0.1mA / ± 1.5 % + 20
10.000A / 1m A / ± 1.5 % + 5

– DC current measurement using current clamp :
range 60A ( při 10mV/A ) / resolution 0,001A / accuracy ±(1.0% + 30)
range 600A ( při 1mV/A ) / resolution 0,01A / accuracy ±(1.0% + 30)

– AC current measurement using current clamp :
range 60A ( at 10mV/A ) / resolution 0,001A / accuracy ±(1.2% + 30)
range 600A ( at 1mV/A ) / resolution 0,01A / accuracy ±(1.2% + 30)

– Resistance and conductivity measurement :
( range / resolution / accuracy )
600.00 Ω / 0.01 Ω / ± 0.05 % + 10
6.0000 kΩ / 0.1 Ω / ± 0.05 % + 2
60.000 kΩ / 1Ω / ± 0.05 % + 2
600.00 kΩ / 10Ω / ± 0.05 % + 2
6.0000 MΩ / 100 Ω / ± 0.15% + 5
60.000 MΩ / 1 kΩ / ± 3 % + 2
60.00nS / 0.01nS / ± 1 % + 10 (S = Siemens unit)

– Capacitor capacity measurement :
( range / resolution / accuracy )
6.000 nF / 1 pF / ± 3.0 % + 30
60.00 nF až 600.0 µF / 10pf až 100 nF / ± 2.5 % + 5
6.000 mF až 60.00 mF / 1 µF až 10 µF / ± 10 %

– Frequency, duty cycle and period measurement :
( range / resolution / accuracy )
60.000 Hz až 10.000 MHz / 0.0001 Hz až 0.001 MHz / ± 0.01 % + 5
0.1 % až 99.9 % / 0.1 % / ± 3.0 % + 40
100.0ms až 0.100 µs / 0.1ms až 0.001µs / ± 0.1 % + 5

– Rectangular signal generator :
Frequency 0.5Hz až 4800Hz / 0.1Hz is the stepping level / accuracy ± 0.01 % + 5
Duty ratio 0% až 100% / 0.1% is the stepping level / accuracy ± 0.5 %
Amplitude / 0.8Vp / accuracy ± 0.2Vp

– Display type inverse, OLED with dot matrix
– sampling frequency : 4 to 5 / sec
– number of digit : 60000
– Analog line : 31 segments
– Power supply : battery LiIon 7,4V / 1800mAh
– fuse protection 10A with fuse FF 10A H / 1000V (10 x 38mm)
– fuse protection mA / µA fuse FF 800mA H / 1000V (6 x 32mm)
– instrument dimensions : 206 x 95 x 53 mm
– weight: approx. 500 g (including batteries)
– working temperature : 0 ° C to 40 ° C
– working relative humidity at 0 ° C to 30 ° C less than or equal to 75%, at 30 ° C to 40 ° C less than or equal to 50%
– storage temperature : – 10 ° C to 50 ° C
– Possibility to purchase current clamp, for range up to 600A
– The device meets the standards :
     cETLus, CAT III 1000V, CAT IV 600V, double insulation, overload protection greater than 1000V
     EN 61326-1: 2013; EN 61326-2-2: 2013
     EN 61010-1: 2010; EN 61010-2-030: 2010; EN 61010-2-033: 2012
     Conforms to UL STD .: 61010-1, 61010-2-030
     Certified to CSA STD. C22.2 No. 61010-1, 61010-2-030, 61010-2-033

– Manufacturer : UNI-TREND
– www.uni-t.cz

Package contents :

– Multimeter UT171C with storage case
– LiIon battery 7.4V / 1800mAh – in the device
– Fuse F1 : FF 800mA H 1000V (6 x 32mm) – in the device
– Fuse F2 : FF 10A H 1000V (10 x 38mm) – in the device
– USB cable with opto-el. converter and CD with software
– thermocouple type K (nickel-chromium-nickel-silicon) up to + 230 ° C)
– test leads with CAT III 1000V, CAT IV 600V tips
– DC power supply 10V / 500mA with accessories
– instructions for use in Czech, Slovak and English
