Pomoćni kontaktni blok proizvođača Siemens robustan i pouzdan izbor za razvodne ormane, mašine i postrojenja.

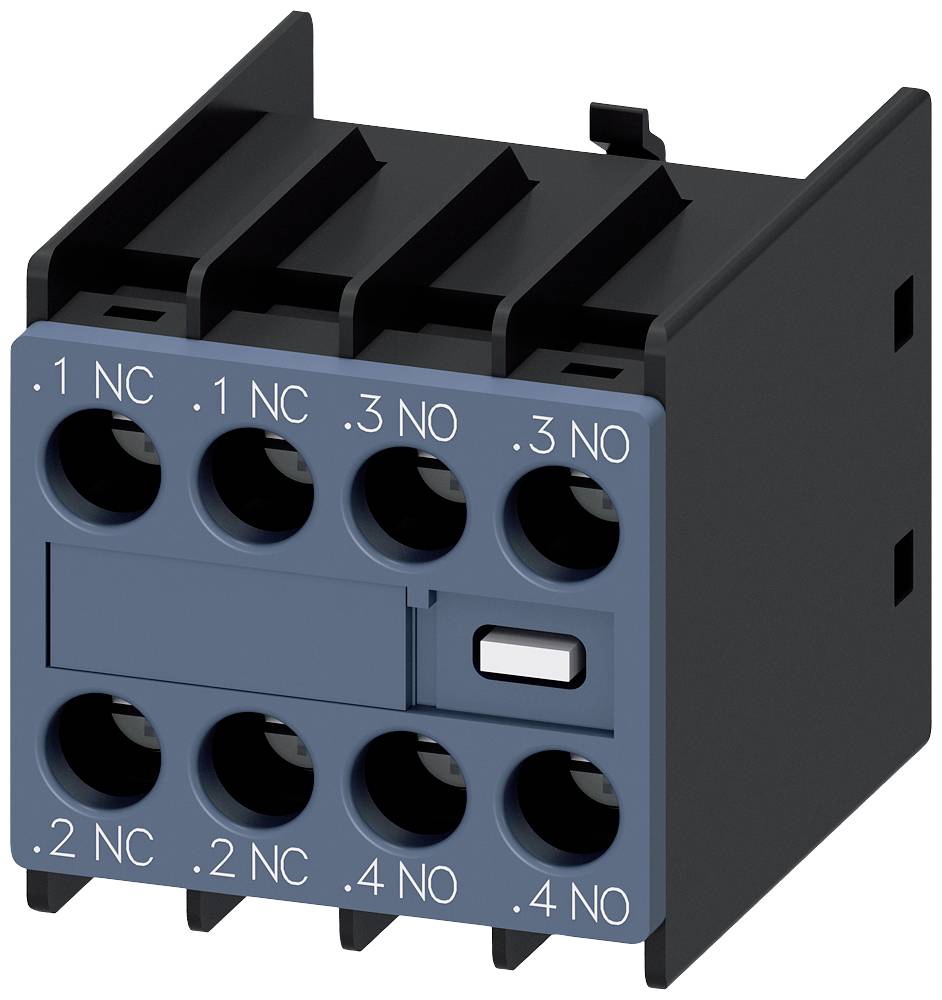

Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NC, 1 NC, 1 NO, 1 NO for 3RH and 3RT screw terminal .1/.2, .1/.2, .3/.4, .3/.4 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts i the control circuit. The front-mounted 3RH29 auxiliary switches can be installed on 3RT2 contactors and 3RH2 contactor relays without the need for tools, regardless of size. The 3RH19/3RH29 auxiliary switches are available as versions for front or lateral mounting, with up to four instantaneous contacts or up to two leading NO and NC contacts. The auxiliary switches can be designed as positively driven contacts i 3RH contactor relays or also as mirror contacts i the case of 3RT power contactors. All of them are available with screw terminal and spring-type terminal. Simple, efficient and always up to date – SIRIUS modular system.
Ključne karakteristike:
– Tip proizvoda: pomoćni kontaktni blok
– Model: 3RH2911-1HA22
– Konfiguracija kontakata: 2 NO kontakt, 2 NC kontakt
– Broj polova: 4-polni
– Priključak: vijčana stezaljka
– Stepen zaštite (IP): IP20
– Način montaže: prednja
– Radna temperatura: -25 °C do +60 °C
– Širina: 36 mm
– Visina: 37.5 mm
– Dubina: 43.7 mm
– Dimenzije: (Š x V x G) 36 x 37.5 x 43.7 mm
– Mehanički radni vek: 1.0E7
– Sadržaj pakovanja: 1 kom
Usklađenost: RoHS usklađenost: da.
Prodaje se pojedinačno (1 komad).
