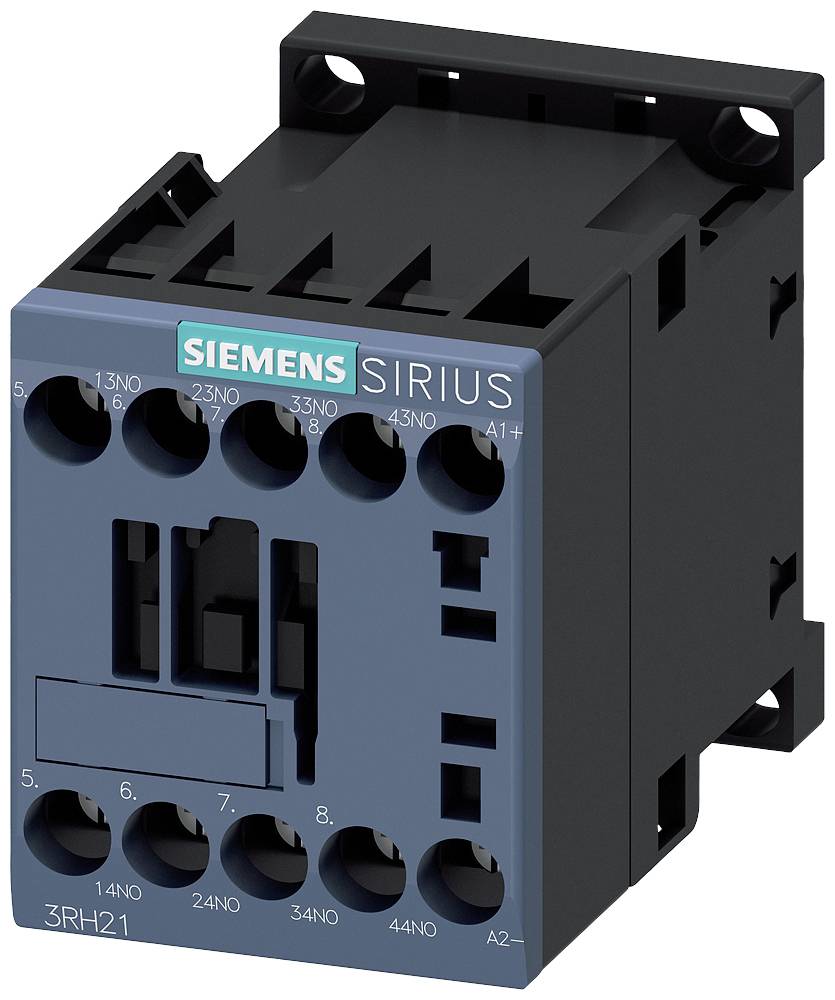

Siemens 3RH2140-1BB40 kontaktor 4-polni 24 V/DC

Kontaktor proizvođača Siemens robustan i pouzdan izbor za razvodne ormane, mašine i postrojenja.

Contactor relay, 4 NO, 24 u DC, Size S00, screw terminal Auxiliary contactor SIRIUS 3RH2 for switching the control signals i the control circuit. The SIRIUS 3RH2 contactor relays have standard-compliant terminal designations and a reliable and time-saving connection technology. Thanks to the multiplication of outputs, simultaneous switching of several auxiliary circuits is possible. All contacts are available with positively driven operation for safety applications as well as SUVA versions. The contactor relays are climate-resistant, have a high contact reliability and are suitable for use worldwide thanks to the corresponding approvals (e.g. IEC and UL/CSA). They are available with AC or DC operation and with screw or spring-loaded terminals. The basic version of the contactor relays is a 4-pole design which can be extended up to 8 poles by means of snap-on auxiliary switches. The extensive range of accessories for the 3RT2 contactors i sizes S00 to S3 can also be used for the 3RH2 contactor relays. The 3RH2 contactor relays replace the well-proven 3RH1 series. Simple, efficient and always up to date – SIRIUS modular system.

Ključne karakteristike:

– Tip proizvoda: kontaktor
– Model: 3RH2140-1BB40
– Tip upravljačkog napona: DC
– Konfiguracija kontakata: 4 NO kontakt
– Broj polova: 4-polni
– Nazivni napon: 24 V/DC
– Priključak: vijčana stezaljka
– Stepen zaštite (IP): IP20
– Način montaže: DIN šina
– Radna temperatura: -25 °C do +60 °C
– Širina: 45 mm
– Visina: 57.5 mm
– Dubina: 73 mm
– Dimenzije: (Š x V x G) 45 x 57.5 x 73 mm
– Mehanički radni vek: 3.0E7
– Sadržaj pakovanja: 1 kom

Usklađenost: RoHS usklađenost: da.

Prodaje se pojedinačno (1 komad).

Primena: uklapanje i isklapanje elektromotora i drugih potrošača u industrijskim i komercijalnim instalacijama.
