Poluprovodnička zaštita proizvođača Siemens kvalitetna komponenta niskonaponske sklopne opreme, izrađena prema priznatim IEC standardima.

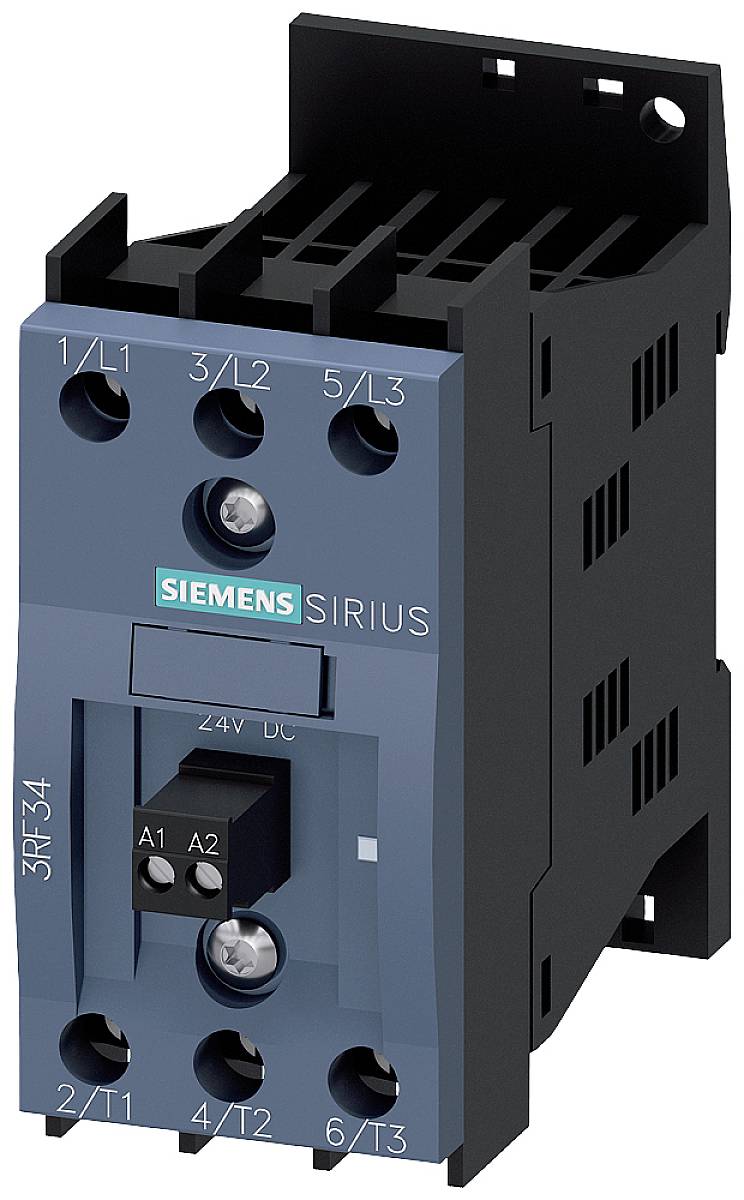

Solid-state contactor 3-phase 3RF3 AC 53 / 5.2 A / 40 °C 48-480 u / 24 u DC 2-phase controlled Instantaneous switching screw terminal solid-state contactor SIRIUS 3RF34 for switching motors for frequent activation/deactivation, e.g. i conveyor systems. The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly i the control panel. The compact design saves space on the mounting rail The devices are approved for worldwide use (e.g. IEC and UL/CSA). The solid-state contactors are available i two widths for different power ratings and operating voltages. They are designed for AC or DC operation and are available with screw or spring-type terminals. Link modules, adapters and labels are available as accessories. Simple, efficient and always up to date – SIRIUS modular system.
Ključne karakteristike:
– Tip proizvoda: poluprovodnička zaštita
– Model: 3RF3405-1BB04
– Tip upravljačkog napona: DC
– Konfiguracija kontakata: 2 NO kontakt
– Broj polova: 3-polni
– Upravljački napon (opseg): 15 – 24 V/DC
– Priključak: vijčana stezaljka
– Stepen zaštite (IP): IP20
– Način montaže: DIN šina
– Radna temperatura: -25 °C do +60 °C
– Širina: 45 mm
– Visina: 95 mm
– Dubina: 100.8 mm
– Dimenzije: (Š x V x G) 45 x 95 x 100.8 mm
– Sadržaj pakovanja: 1 kom
Usklađenost: RoHS usklađenost: da.
Prodaje se pojedinačno (1 komad).
Primena: beskontaktno, brzo isklapanje opterećenja bez habanja mehaničkih delova.
