Servo motor proizvođača Siemens kvalitetna komponenta za automatizovane sisteme, izrađena prema priznatim standardima.

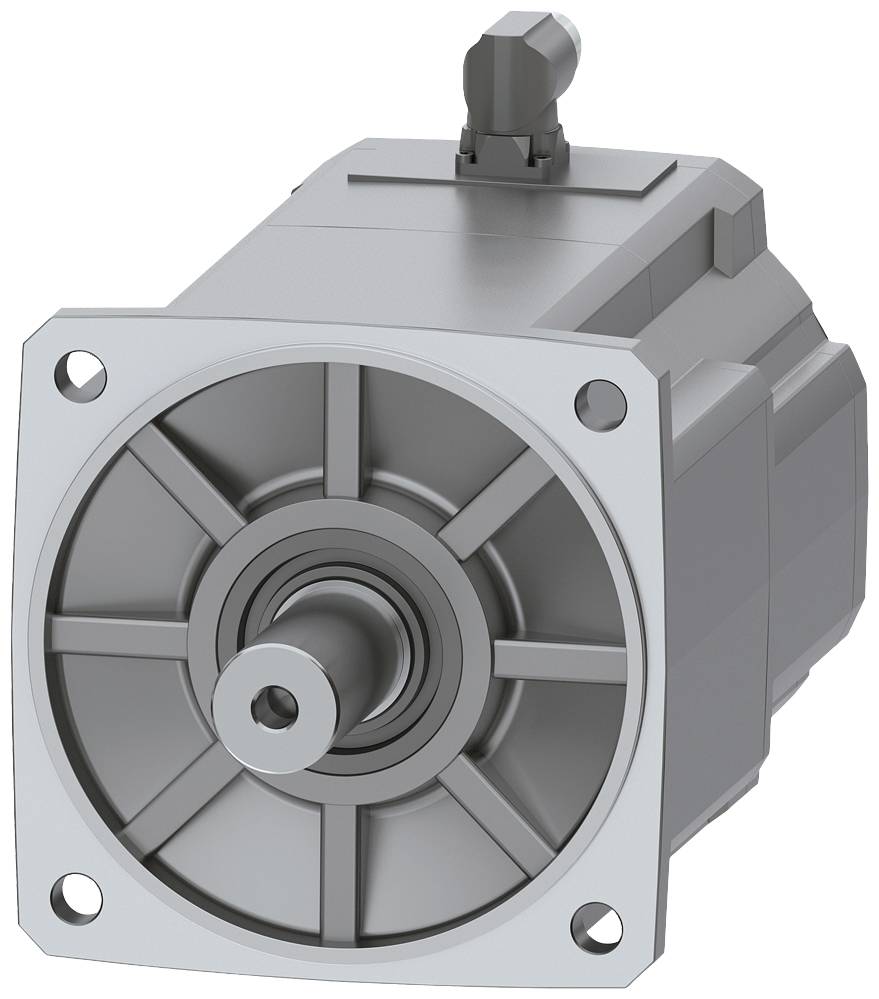

SIMOTICS sa-1FK2 CT servo motor M0=30 Nm- PN = 4.5 kW at nN=1500 rpm (380-480 u)- PN = 2.5 kW at nN=750 rpm (200-240 u)- with holding brake- degree of protection IP64- cylindrical shaft D38x80 mm- absolute encoder single-turn 22-bit (encoder AS22DQC)- with OCC interface- plug size M23, rotatable- Servo motor SIMOTICS sa-1FK2 for a wide range of uses i industrial environments. SIMOTICS sa‑1FK2 servomotors are compact synchronous motors with a high dynamic performance that set themselves apart as a result of their high power density, degree of protection and overload capability. The motors are available i two variants: as High Dynamic variant (highest dynamic performance as a result of the low intrinsic moment of inertia for applications demanding a high dynamic performance with low moved masses) – and as Compact variant (precise and stable closed-loop control for medium up to large moved masses as a result of a medium intrinsic moment of inertia). SIMOTICS sa‑1FK2 servomotors fully exploit their strengths i a system with the SINAMICS S210 converter and simple connection using the one cable connection (OCC): Advantages include the short control and positioning times, fast and precise correction of disturbing quantities as well as stable control with a high dynamic performance. The servo motors can be configured to address a wide range of requirements. For example with and without holding brake, IP64 or IP65 degree of protection, singleturn or multiturn absolute encoders – to name just a few. Further, the servomotors are available with a range of shaft heights extending from 20 to 100. A shaft sealing ring is available to achieve an IP65 degree of protection and for subsequent mounting at the motor or as spare part. SIMOTICS – the optimum motor for each and every motion control application.
Ključne karakteristike:
– Tip proizvoda: servo motor
– Model: 1FK2210-3AB10-0SA0
Primena: precizno pozicioniranje i upravljanje pokretom u automatizovanim mašinama i robotskim sistemima.
