Opis

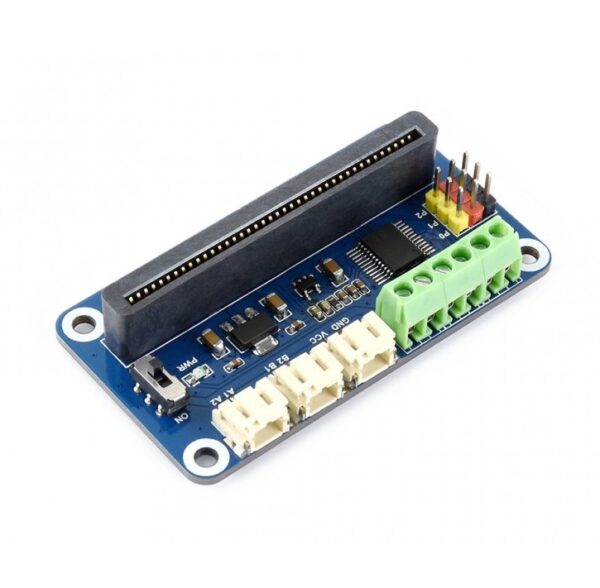

Ova upravljačka ploča daje vašem micro:bitu mogućnost pokretanja dvokanalnih DC motora i trokanalnih servo motora. To je idealan izbor za vas da uradite sami mobilne robote.
Features
micro:bit edge connector, directly pluggable
2x DC motor interfaces, 3x servo interfaces
Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
Onboard multi connector options for DC motors in different specifications, onboard standard servo headers
Comes with development resources and manual (micro:bit graphical examples)
Specifications
Power supply: 6V~12V (VIN terminal)
Servo voltage: 5V
Logic voltage: 3.3V
Driver: TB6612FNG
Dimension: 65mm x 36mm
Mounting hole size: 3.0mm
