Opis

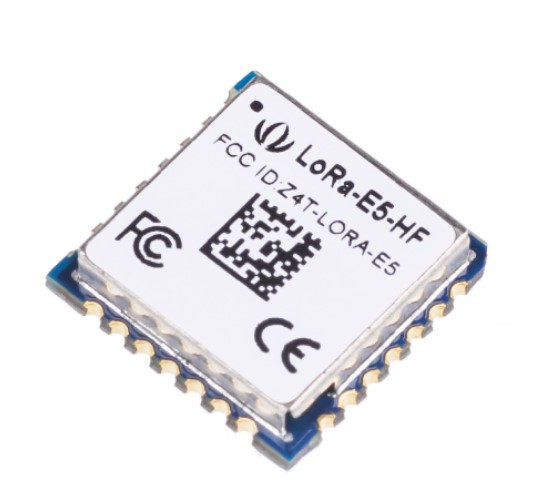

Wio-E5 Long Range module is designed with ST system-level package chip STM32WLE5JC, ARM Cortex M4 ultra-low-power MCU and Long Range SX126X. It supports (G)FSK mode and Long Range . 62.5kHz, 125kHz, 250kHz, and 500kHz bandwidth can be used in Long Range mode, making it suitable for the design of various IoT nodes, supporting EU868 and US915.
Features
Ultra-low Power Consumption: as low as 2.1uA sleep current (WOR mode)
Extremely Compacted Size: 12mm * 12mm * 2.5mm 28 pins SMT
High Performance: TXOP=22dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW
Long Distance Use: 158dB link budget
Wireless Connectivity: Embedded Long Range protocol, AT command, support global Long Range frequency plan
Worldwide Compatibility: wide frequency range; EU868/US915/AU915/AS923/KR920/IN865
Great Flexibility: For users who want to develop software on the MCU of the module, other GPIOs of the MCU can be easily manipulated, including UART, I2C, ADC, etc. These rich GPIO interfaces are useful for users who need to expand peripherals.
FCC and CE Certified
This Wio E5 module is designed with industrial standards, hence it’s highly suitable to be used in designing industrial IoT products, with a wide working temperature at -40℃ ~ 85℃.
Wio-E5 is a low-cost, ultra-low power, extremely compact, and high-performance Long Range Module designed by Seeed Technology Co., Ltd. It contains ST system-level package chip STM32WLE5JC, and this STM32WL module is the first SoC integrated with the combo of Long Range RF and MCU chip. This module is also embedded with ARM Cortex M4 ultra-low-power MCU and Long Range SX126X and therefore supports (G)FSK mode and Long Range .
The previous versions of the Long Range module all require additional use of MCU (Microcontroller) to run the application code. Now, you can directly and immediately put the Wio-E5 STM32WLE5JC Module into use to complete this process without the hustle of additional accessories. With the Stamp Hole form factor, Wio-E5 enables you to integrate this module on your device’s mainboard conveniently. You don’t need to waste time and effort on designing your own device from scratch with the use of MCU and Long Range chip. Moreover, the module has already been certificated, so your completed device can be certified and approved by any agency cheaply and rapidly. Thanks to the innovative design, Wio-E5 has a comparatively lower cost than other Long Range modules. This will greatly save your budget in the whole process of product design.
Wio-E5 Long Range module is highly suitable for long-distance, ultra-low-power applications such as smart agriculture, smart city, wireless meter reading, sensor networks, wireless communication, and other low-power wide-area IoT scenarios. If you want a module to design your own Long Range sensor, to construct IoT nodes, or to support any wireless communication applications, Wio-E5 is the premium choice that provides you with an optimal user experience.
