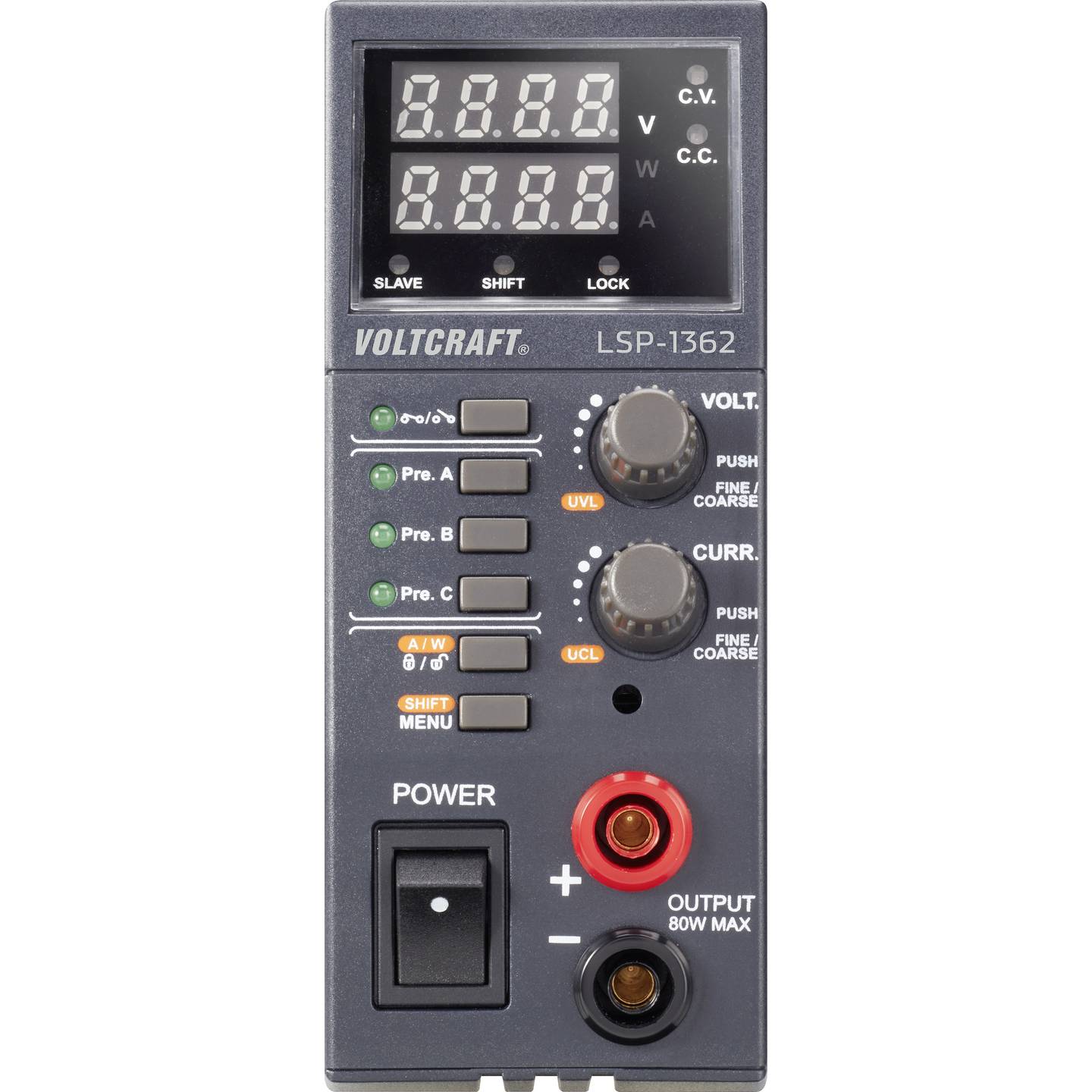

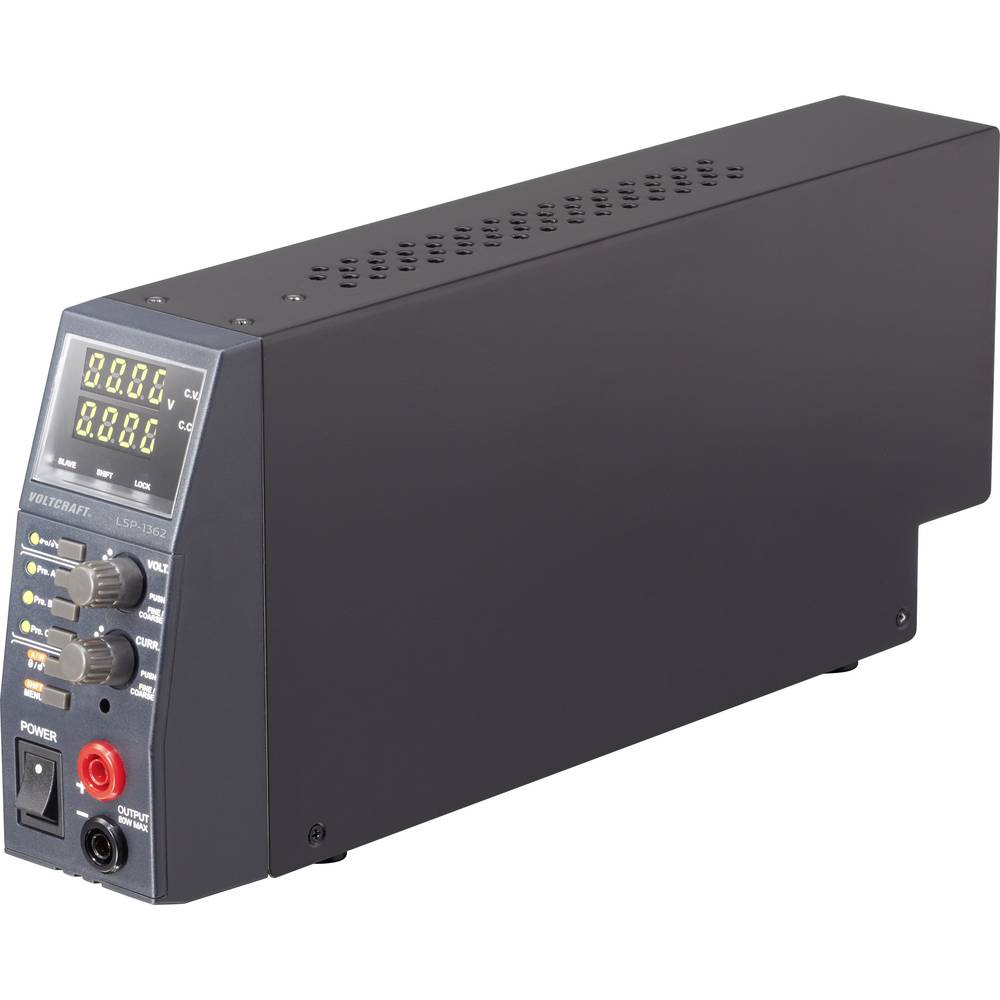

Laboratorijsko napajanje VOLTCRAFT LSP-1362 0.5-36V 0-5A 80W

32.000.00 rsd;

Opis

Laboratorijsko napajanje VOLTCRAFT LSP-1362 0.5-36V 0-5A 80W Bench PSU (adjustable voltage).

No. of outputs 1 x

0.5 – 36 V / 5 A (max.)

80 W

Autoranger, Master/slave communication protocol

Input current without load (230 V/ AC): ≤0.13 A.

Input current at full load (230 V/ AC): ≤0.5 A.

AC input frequency: 50/60 Hz~

Efficiency: ≥ 78%.

Power factor: ≥ 0.9

Selection of the constant voltage and current range:

0.5 to 36 V / 0 to 5 A: Automatic range with maximum output power 80 W (VXA ≤ 80)

Constant voltage characteristic:

Set resolution: 10 mV (starting at 0.5 V)

Load control (0 to 100%): ≤ 30 mV

Line control (± 10%): ≤ 4 mV

Ripple and noise (peak to peak): ≤ 35 mV

Constant current features:

Set resolution: 1 mA (start at 30 mA)

Load control (0-100%): ≤ 10 mA

Line control (± 10%): ≤ 10 mA

Meter accuracy:

Volt. Meter accuracy: ±(0.5% +5 count)

Current measuring accuracy: ±(0.5% +5 count)

APPROVAL: CE; EMC: EN55011; LVD: EN61010

Cooling method: Natural convection



Easy to program and set up
The Voltcraft LSP-1326 laboratory power supply with adjustable voltage and an output power of 80 watt has output ranges from 0.5 to 36 Volt or 0 to 5 Ampere and a mature design for constant voltages. It can be used in parallel for up to 30 devices via the simple, programmable and set-up master/slave control. An adjustable voltage and current limitation protects the connected consumers against over-voltage/over-current. The voltage and current strength are shown in the double display and can be adjusted continuously. The power supply unit is overload and short-circuit proof and contains a safety temperature cut-off. On the outside, the power supply unit has a key lock function for locking all control elements on the device and an improved protection function with regard to the accidental adjustment of setpoints. Setting the V or I controller is possible with only one hand. The control is done by means of a rotary encoder, so that each digit can be easily selected and finely adjusted. An even faster setting is possible with the help of the three definable voltage and current presets. The 4-digit display of voltage and current offers 10 mV or 1 mA accuracy.

This text is machine translated.

Features

  • Output on/off switch and on/off status setting when switching the output
  • Voltage detection of the remote station switches the supply voltage depending on the load side
  • Universal input with 100 to 240 VAC, 50 to 60 Hz
  • Error and warning messages
  • User adjustable upper current and voltage limit: Yes
  • Number of presets calls up frequently used V & I settings: 3

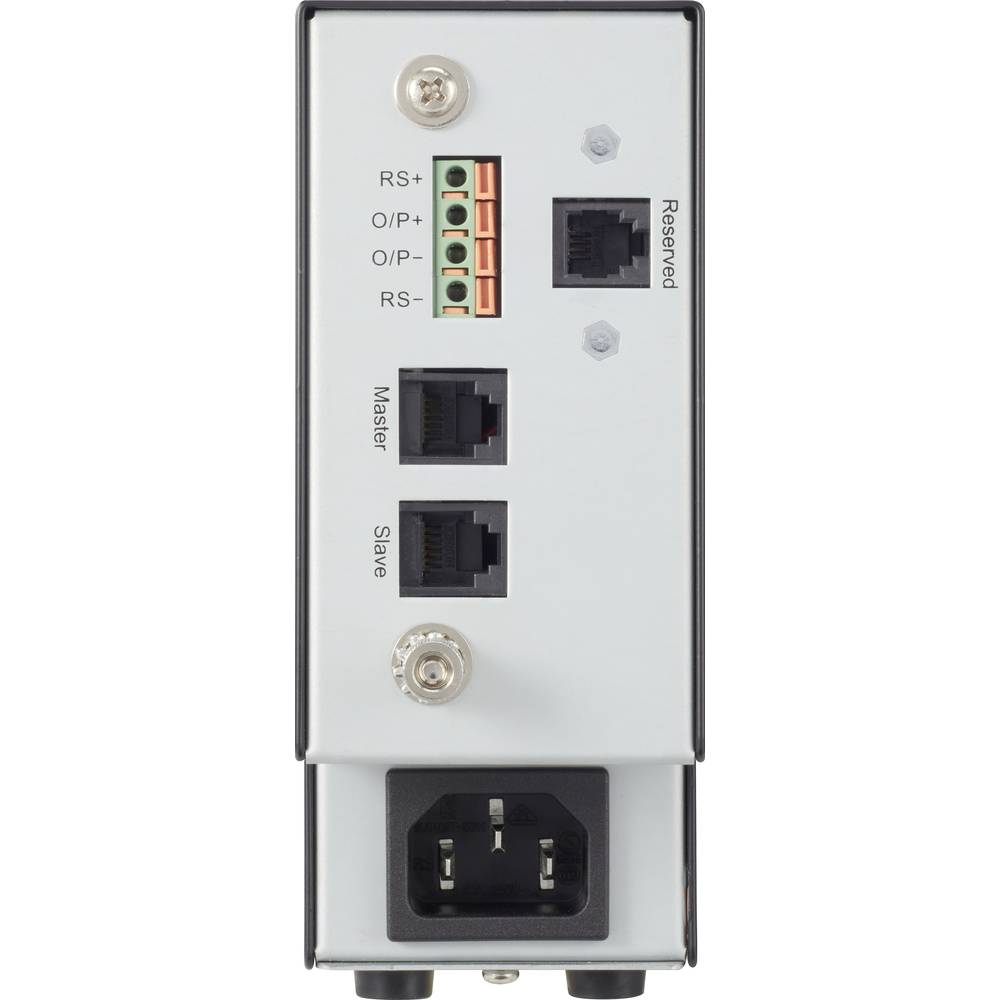

  • Additional function: Remote sensing, master/slave control
  • Menu navigation with further functions

Scope of delivery

  • Power supply
  • Power cable;
  • Output cable with right-angled safety plug and alligator clip
  • Master/slave connection cable
  • Terminating resistor for master/slave connection
  • User manual
