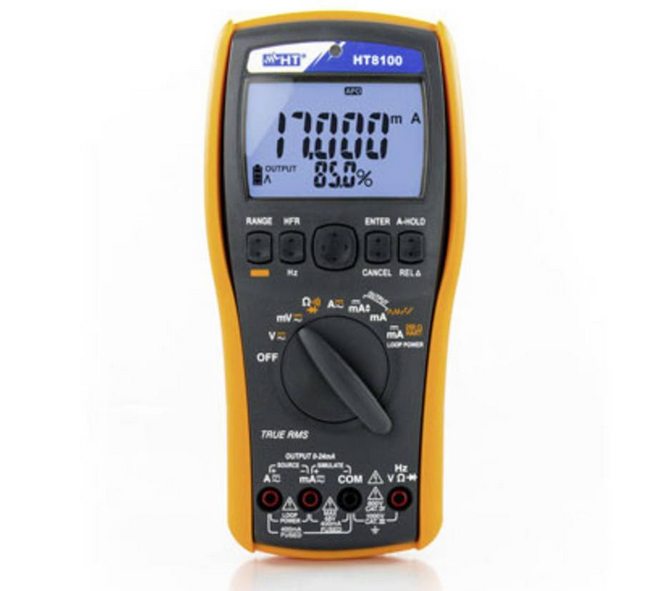

Kalibrator struje i napona HT Instruments HT8100

76.800.00 rsd

Kategorija:

Opis

The HT8100 is a digital process calibrator with multimeter function for the generation and measurement of DC voltage and direct current. For the direct power generation, it is also possible that the percentage values, depending on the set current (0% = 4 mA, 100%=20mA). The HT8100 enables the measurement of current, which is generated by external converter or can simulate current transformer. Via function keys is a simple operation possible. The HT8100 is the ideal solution for the most common industrial applications and for use in the laboratory area.
  • Measuring ranges: AC/DC voltage, AC/DC
  • AC/DC current
  • Resistance
  • Continuity testing
  • Frequency
  • Diode testing
  • Relative measurement
  • Current measurement in percent (0 – 20 mA, 4 – 20 mA)
  • Current up to 24 mA/DC
  • Simulation of an external converter
  • DATA Hold
  • MAX/MIN/AVG
  • Auto display lighting
  • Auto poweroff.

Scope of delivery

  • Safety test leads
  • Batteries
  • Protective holster
  • Magnetic belt
  • User manual.
