Chauvin Arnoux 6501 tester izolacije 500 V 200 MΩ – merni instrumenti – Elektroleum.

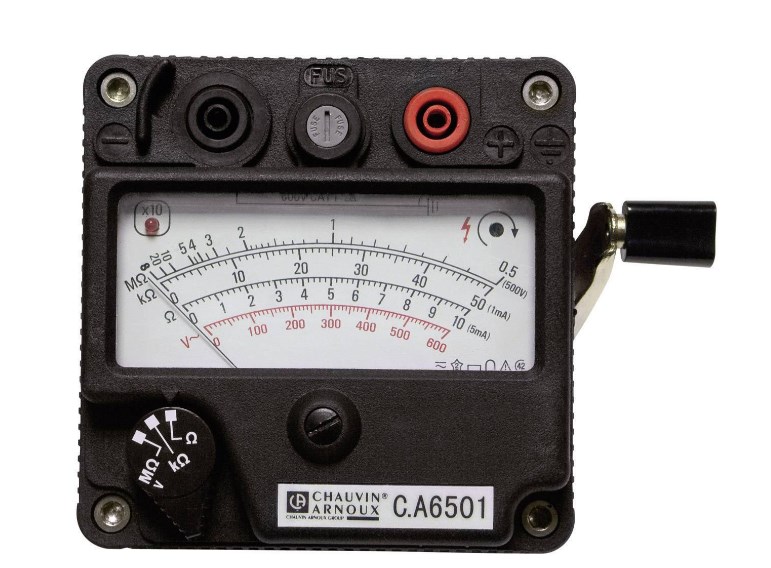

The portable, light and compact insulation meter C.A 6501 is mains-independant with the power supply via the inductor.
The device suitable for construction site use at all times is suitable for power and telecommunication networks in industry and living areas.
It can be used in a wide range of applications, such as testing the conformity of electrical systems with applicable standards or maintenance of cables, motors, residual current circuit breakers, transformers, etc.
Highlights & Details
-
100% operational, 0% power consumption
-
Insulation measurements up to 200 MΩ (500 V/DC)
-
Automatic switchover
-
Robust housing suitable for installation
-
Indicator light for correct measuring conditions
Facts
-
Absolutely constant test voltage
-
Automatic measurement range switching
-
Automatic discharge of the measuring circuit after the insulation measurement
-
Standard-compliant measurements according to DIN VDE 0100, NIN/NIV, ÖVE E 8001, etc.
Delivery
-
1 carrying case
-
2 test leads 1.5 m PVC (red+black)
-
2 alligator clips (red+black)
-
1 test tip (sw)
